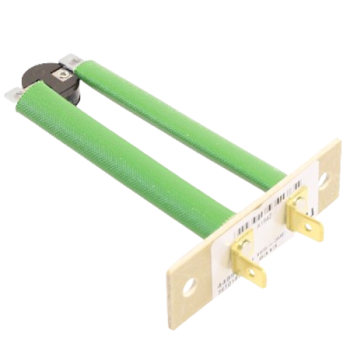

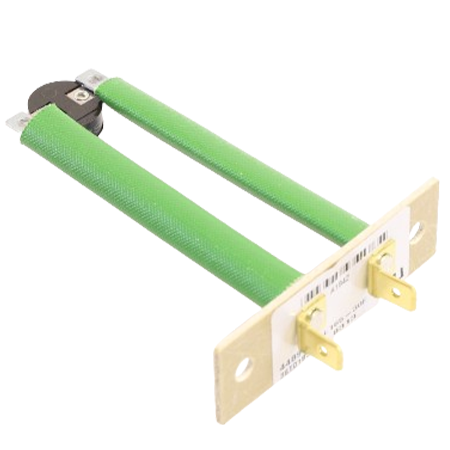

York S1-02535361000 Switch Limit 165 Open 135 Close Auto

York S1-02535361000 Switch Limit 165 Open 135 Close Auto
Images for general purposes only. Actual may be different than depicted.

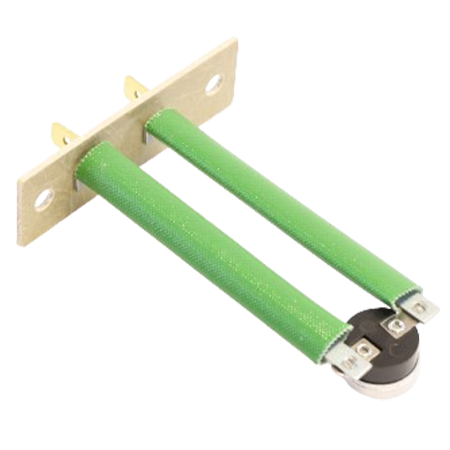

York S1-02535361000 Switch Limit 165 Open 135 Close Auto York S1-02535361000 Switch Limit 165 Open 135 Close Auto York S1-02535361000 Auto Switch Limit 3-Inch Insertion Strap

York S1-02535361000 Switch Limit 165 Open 135 Close Auto

SKU: S1-025-35361-000
Rating:
Quantity Price Stock
9
Usually Ships 2 - 3 Weeks
$120.83     /ea
9
0
$0.00
0
$0.00
0
S1-025-35361-000
The S1-02535361000 is a switch limit that has a 165°F opening and 135°F automatic closing pressure.  it has a 3" extension strap length with insulating sleeves.  UL-recognized.

The auto limit switch is suitable for regulating control or safety limit applications.  The unit is designed with a bimetal disc that allows high-speed contact separation for a longer lifespan.  It also has auto reset providing open or close contacts on temperature rise.

The S1-02535361000 is easy to install with board mounting on extension straps to extend it further into the airstream.
Opening Temperature 165°F
Closing Temperature 135°F
Insertion Strap Length 3"
Amperage at 120V 15A
Voltage 120V/250V
Amperage at 250V (100,000 cycles) 10A
Amperage at 250V (30,000 cycles) 16A
Approvals UL-recognized
Switch Action SPST
