York S1-32434546000 Draft Inducer Assembly

York S1-32434546000 Draft Inducer Assembly
Images for general purposes only. Actual may be different than depicted.
York S1-32434546000 Draft Inducer Assembly York S1-32434546000 Blower Venter Assembly York S1-32434546000 Draft Inducer Assembly with Gasket 230VAC 3400 RPM CCW York S1-32434546000 Blower Vent Assembly Single Phase 0.60 Amps CCW Lead End Rotation

York S1-32434546000 Draft Inducer Assembly

SKU: S1-324-34546-000
Rating: (1)
Quantity Price Stock
1
Usually Ships in 1 week
$892.45     /ea
1
0
$0.00
0
$0.00
0
S1-324-34546-000

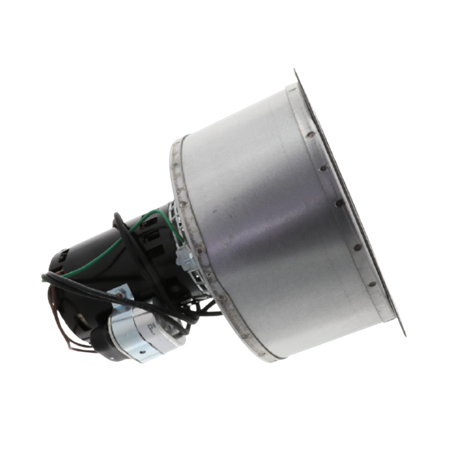

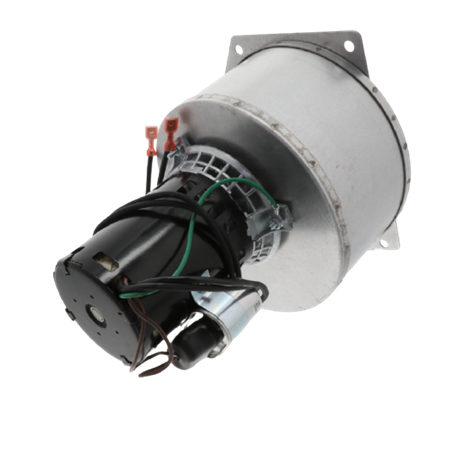

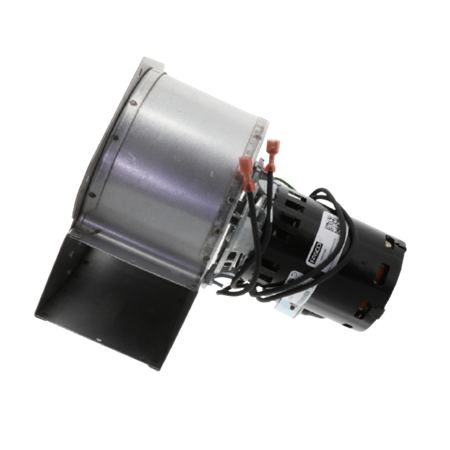

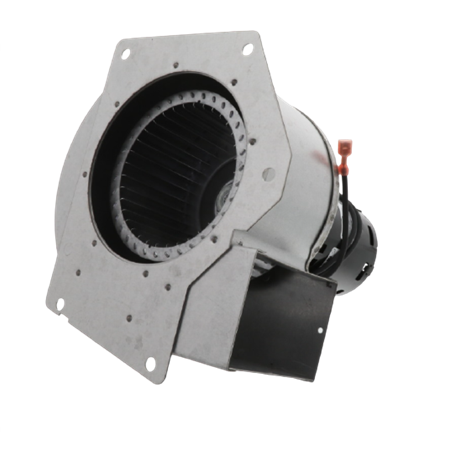

The S1-32434546000 is a Draft Inducer Assembly for York Central Air Conditioner.  The assembly consists of a single phase blower motor, venter housing, blower wheel, and gasket.

The motor operates at 230VAC and rotates the blower wheel in a counterclockwise lead end rotation at a speed of 3400 RPM.  Its housing holds the blower wheel and helps in directing the air in one direction.  Also, the unit includes a gasket which gives a tight sealing when installing the whole assembly to your HVAC System.

See the following compatible York Central Air Conditioner model:

Y13AN22A5IAABBA
Y13AN24A5MAAAAA
Y13AN24F6CBBAAA
Y13AN24M5KAKCAA
Y13AN24R7KDNCCA
Y13AN25M1KANBCA
Y13AN42E6KDABAA
Y13AN42E6KDFBAA
Y13AN44A5IAABBA
Y13AN44A5IAEBBA
Y13AN44A6CAEBAA
Y13AN44A6CAEBAA
Y13AN45A1IABBBA
Y13AN45A1IACBAA
Y13AN45A3IADCCA
Y13AN45A3MCABAA
Y13AN45C1CBBABA
Y13AS44C5KBEBBA
Y13AS44C7ECFBBA
Y13BN22A5IBKBBA
Y13BN42A6ICNAAA
Y13BN44Q7KDFAFA
Y13BS42A7MDEBEA
Y13EN42A5IDNBAA
Y13EN42A5MANABA
Y13EN42C5MANDAA
Y13EN44A5IDNBEA
Y13EN44A5MANDBA
Y13EN45A1AANEBA
Y13EN45A1IANBBA
Y13ES45M1KANBCA
Y14AN24F6CBEAAA
Y14AN25A6IDEBCA
Y14AN44A6IDABEA
Y14AN44A6IDFBBA
Y14AN72C6ODMBAA
Y14AS24A6IDFCBA
Y14AS74A6GDFBBA
Y14ES24A6IANBBA
Voltage 230VAC
Motor Phase 1 PH
Speed 3400 RPM
Amperage 0.60 Amps
Rotation Counterclockwise Lead End Rotation

By Michael

from

Yes, I would recommend this product to a friend or co-worker

5.0 Inducer

I ordered an inducer. It came promptly. It was the correct part and installed everything work.
