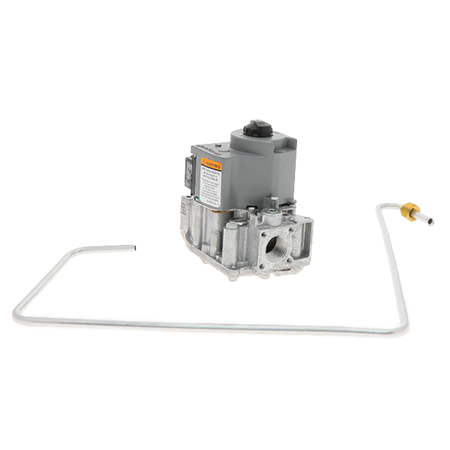

York S1-37311099700 Gas Valve With Pilot Tube

Name: York S1-37311099700 Gas Valve With Pilot Tube
Brand: York
SKU: S1-373-11099-700
Price: 371.59 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

York S1-37311099700 Gas Valve With Pilot Tube

SKU: S1-373-11099-700

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$371.59 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

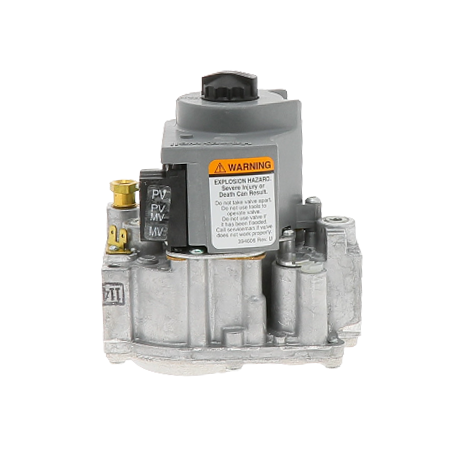

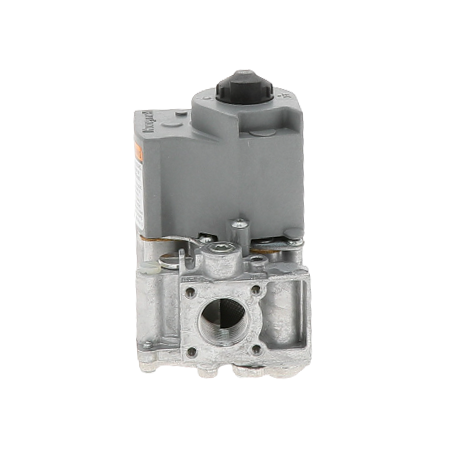

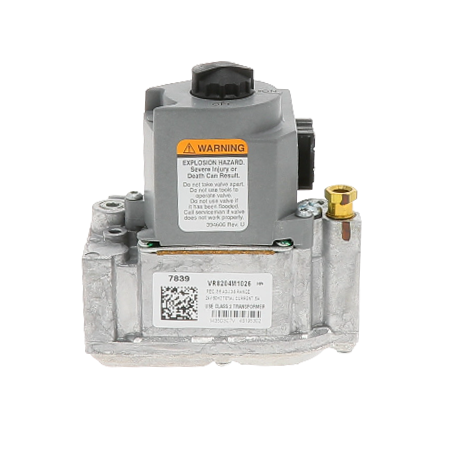

The S1-373-11099-700 is an intermittent pilot dual automatic natural gas valve that includes a pilot tube. The valve consists of a safety shutoff, a manual valve, two automatic operators, a pressure regulator, and a pilot adjustment screw.

The valve is mainly used for gas-fired, intermittent pilot, and heating applications. The unit features a two-position gas control knob that can be rotated to an on or off position. Designed with an adjustable servo regulator to provide consistent gas pressure outputs.

The S1-373-11099-700 is compatible with S8600, S8610, and S8620 control modules.

The gas valve can easily be installed with 1/4" male quick-connect terminals and can be mounted in any position between 0 to 90°. Also available are the 393690-13 angle flange kit, 393691 conversion kit accessories, and VR8204M1026 natural gas valve replacement parts.

Voltage	24 VAC
Hertz	60 Hz
Amperage	0.5A
Fuel Type	Natural Gas
Ignition Type	Intermittent
Pressure Range	3 - 5 W.C.
Inlet Connection	1/2"
Outlet Connection	1/2"
Heat Capacity	20,000 Btuh
Temperature Rating	-40° F to +175° F (-40°C to +79° C)

Download Product Information:

York S1-37311099700 Gas Valve Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

DOES THIS VALVE COME WITH LP CONVERSION KIT?

Asked on February 02, 2017 by CHUCK from MILTON,PA.

1 Answers

Have an answer? Click Here

There is no conversion kit included with this valve, just a pilot tube. It is possible there is a conversion kit available but we do not have literature available for this valve, nor does our system show any accessories for it where a conversion kit would normally appear. It is also possible that this is a dual gas valve, however we cannot confirm that at this time. We would recommend that you contact a licensed gas technician in your area to assess the capabilities and/or necessities of your current application.

Replied on February 02, 2017 by Ron from Industrial Stores
