Zone First RDS-10 Auto Damper Open -Close 10"

Name: Zone First RDS-10 Auto Damper Open -Close 10"
Brand: Zonefirst
SKU: RDS-10
Price: 188.92 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Zone First RDS-10 Auto Damper Open -Close 10"

SKU: RDS-10

Brand:

Rating: (1)

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$188.92 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

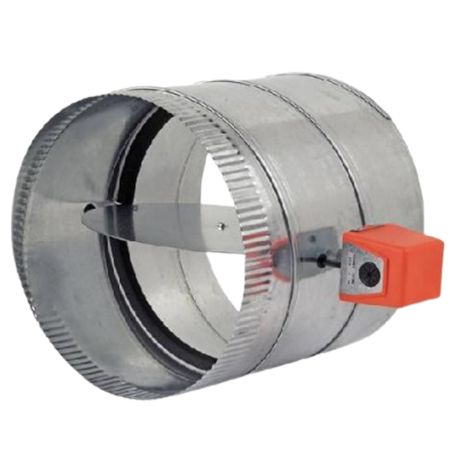

The RDS-10 is a 10" round auto damper that includes a spring return motor actuator operating at 0 to 150°F temperature and 1" W.C. maximum duct pressure. It has an electrical rating of 24V, 7VA, 50/60 Hz, and 6.5W.

The automatic round damper is designed with galvanized steel and a single blade providing excellent efficiency and performance. The unit's minimum position can be adjusted by loosening the set screw and aligning it to the position label.

The RDS-10 is easy to install and can be mounted in any position. It can also be converted to power open or normally close.

Voltage	24V
Frequency	50/60 Hz
Power Consumption	7VA
Wattage	6.5W
Maximum Duct Pressure	1" W.C.
Operating Temperature	0 to 150°F
Size	10"
Housing Material	22 Gauge Galvanized Steel
Damper Timing	Nominal 30 Seconds Powered, 8 Seconds Spring Return

Download Product Information:

Zone First RDS-10 Auto Damper Technical Datasheet

Write a Review

By Lou

from Cambria CA

Yes, I would recommend this product to a friend or co-worker

5.0 Great product from a great company!!!

Thank you! This really puts a damper on our day!!!
