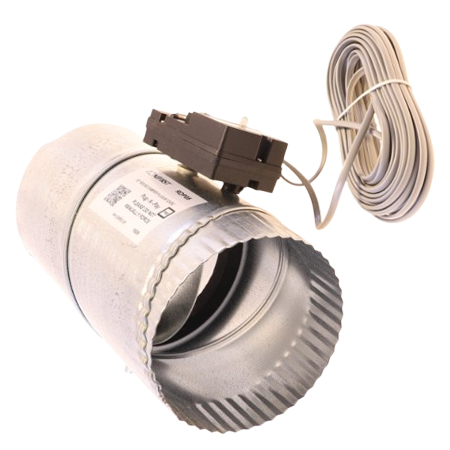

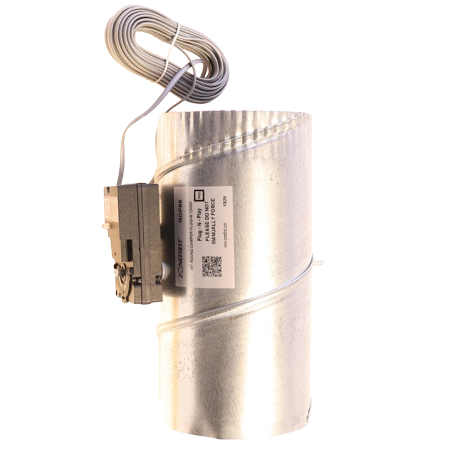

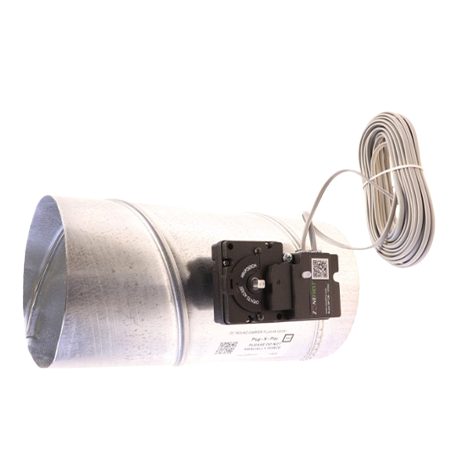

The RDP-05 is a plug-in round damper that has a galvanized steel construction and a 12 Volt DC damper motor. It has a 5" diameter, 25" modular cord, and 2.0” W.C. maximum duct pressure
The RDP series round damper features a single-blade damper within a round spiral duct, equipped with a motor. The unit is designed for use with plug-in zoning panels with high-pressure or high-velocity systems exceeding 0.5" S.P. The MP12M plug-in damper motor and PIW25 modular cord replacement parts are also available.
The RDP-05 is easy to install and can be mounted in any position within the duct system.
| Connection | Modular RJ11, 2 Ports |
|---|---|
| Damper Timing | Nominal 5 seconds powered open-closed |
| Humidity | 5% to 95%, Non-condensing |
| Operating Temperature Rating | 0 to 150°F |
| Motor Voltage | 12VDC 0.100A |
| Linkage | Direct Drive |
| Maximum Duct Pressure | 2" W.C. |
| Torque | 7.0 in/lbs, 112.0 in/oz, 0.79NM |
| Diameter | 5" |
| Construction | 24 Ga. Galvanized Steel |
Download Product Information:
By Charles
from SOMERS CT
Yes, I would recommend this product to a friend or co-worker
The ZoneFirst dampers appear to be well made. They seal well and are easy to install. The LED's provide a clear indication of whether they are open or closed.
