BAPI Wireless Temperature and/or Humidity 900 MHz Receiver

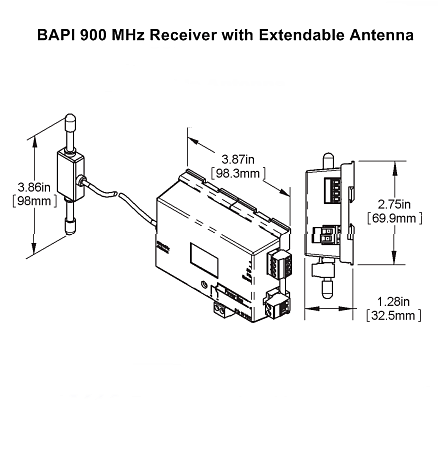

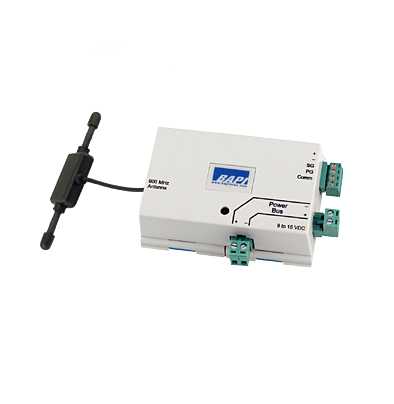

The BA/RCV900-EA-EZ Wireless 900MHz Receiver is designed for 418 MHz Wireless System.  Used together with repeater and 418 MHz Transmitter.  The unit receives a re-transmitted signal at 900MHz from the Repeater.  Its 79" extendable antenna allows optimum reception of the signal.

BAPI Wireless Temperature and/or Humidity System consists of a transmitter, repeater, receiver, and an output module.  Room temperature and/or humidity is measured by the Transmitter and the 418 MHz data is transmitted to a Repeater within 100 feet away.  The Repeater re-transmits signal up to 1000 FT. at 900MHz to Receiver.  In setting up these units, keep in mind to place them in an open-air without any obstruction.  The Receiver is connected to output modules for the conversion of the signal into an analog voltage, current, or resistance for the BAS controller.  It can be linked up to a maximum of 1237 various output modules.
