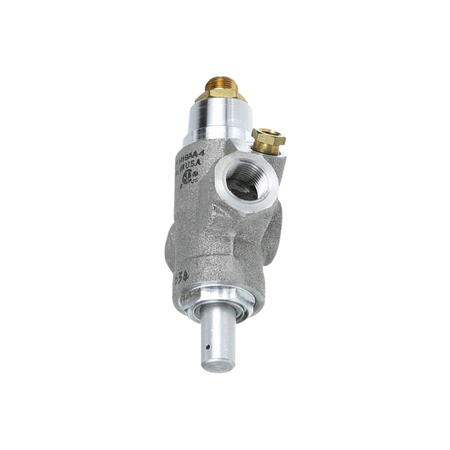

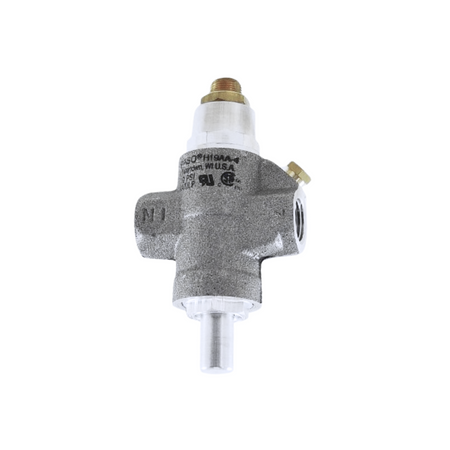

The Baso H19AA-4 is an automatic shut-off pilot gas valve with an aluminum body. This device has a 3/8” NPT connection and can hold gas pressure up to 0.5 psi (35 mbar). UL Recognized and CSA Listed.
The automatic shut-off pilot gas valve provides safe lighting and complete shut-off that closes within 90 seconds in case of flame failure. This component features a flow interrupter that allows gas to flow to the pilot during the lighting operation.

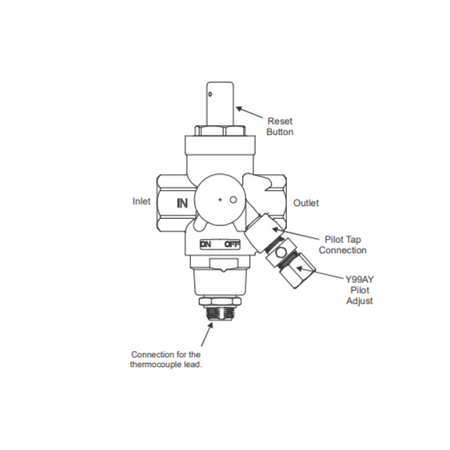

The H19AA-4 is a direct replacement for Nieco 2026 and Hired Hand 3004-2800. Suitable for use in commercial and industrial applications with natural and liquefied petroleum gas. It should be mounted in a position where the reset button is easily accessed.
| Maximum Operating Pressure | 0.5 psi (35 mbar) |
|---|---|
| Kilowatts | 41 kW |
| Maximum Heat Capacity | 140,000 BTU |
| Connection Size | 3/8" NPT |
| Approvals | UL Recognized and CSA Listed |
| Valve Body | Aluminum |
| Gas Types | Natural and Liquefied Petroleum |
| Operating Temperature | 0 to 66°C (32 to150°F) |
By Charles
from
Yes, I would recommend this product to a friend or co-worker
Hard to find part and you had one on the shelf and it fixed our problem
