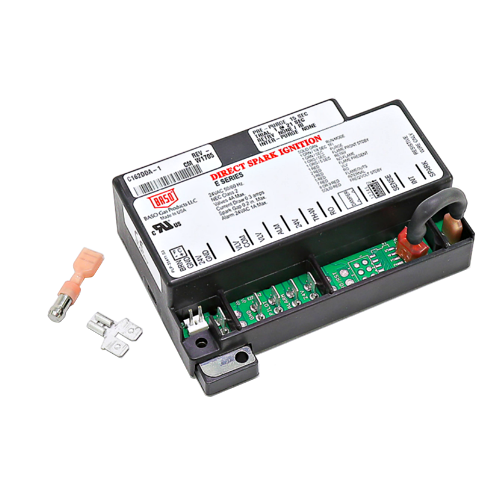

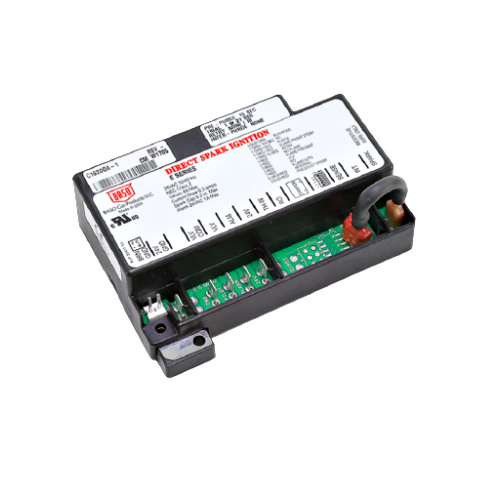

Baso N49AB00150100B-01 Direct Spark Ignition Module

Baso N49AB00150100B-01 Direct Spark Ignition Module
Images for general purposes only. Actual may be different than depicted.
Baso N49AB00150100B-01 Direct Spark Ignition Module Baso C162DDA-1C Direct Spark Ignition Module 24 VAC 30 Sparks per Second Baso C162DDA-1C (N49AB00150100B-01) Direct Spark Ignition Module

Baso N49AB00150100B-01 Direct Spark Ignition Module

SKU: C162DDA-1C
Rating:
Quantity Price Stock
3
Usually Ships 1-9 Days
$183.14     /ea
3
0
$0.00
0
$0.00
0
C162DDA-1C
Baso C162DDA-1C Direct Spark Ignition Module is a replacement for Model No. N49AB00150100B-01.  The module has a pre-purge of 15 seconds and operates with 1 trial at 21 seconds.

A Direct Spark Ignition Control Module controls ignition sequence and gas operation on appliances such as boilers, burners, gas-fired furnaces, and other heating equipment.  The Baso Direct Spark Gas Ignition Module can be used as an alternative to brands Fenwal, Honeywell, ICM, Johnson Controls, and Robertshaw direct spark modules.  The module's hardware type features a direct spark and intermittent pilot ignition.

Pre-Purge 15 Seconds
No. of Trial 1 @ 21 seconds
Retry None
Inter-Purge None
Voltage 24 VAC
Frequency 50/60 HZ
Current Draw 0.3 AMPS
Spark Gap 0.2 inch Max
Approval UL Listed
