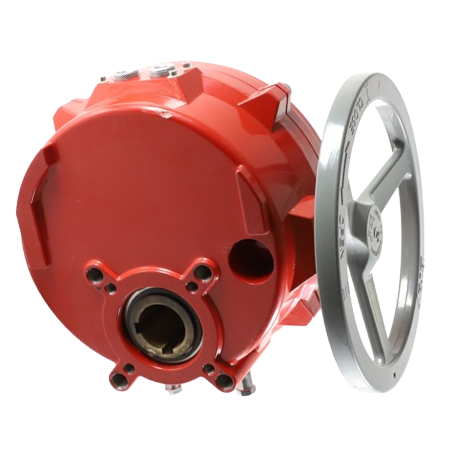

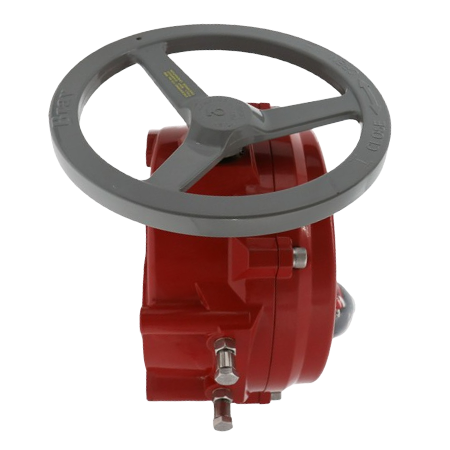

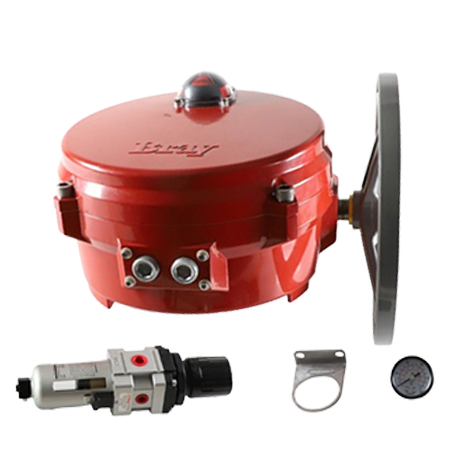

The Bray 700500-113G3536/K is a high-performance electric actuator designed for demanding industrial applications. It has 24 volts and delivers a robust torque output of 5,000 in-lb. This model is equipped with Bray's advanced NXT control technology, enhancing its performance and reliability. The 700500-113G3536/K replaces part numbers 70-0500-113C3-536A and 70-0500-113AC-536B.
The Bray Series 70 actuator is UL, CSA, and CE certified, ensuring compliance with international standards. The actuators feature a lightweight design, a manual override handwheel system, and a highly visible valve status display, making them user-friendly and efficient for various industrial applications.
| Voltage | 24V |
|---|---|
| Torque Output | 5,000 in-lb |
| Frequency | 50-60 Hz |
| Number of Phases | Single-phase |
| Enclosure Rating | NEMA 4 |
| Maximum Operating Temperature | 60°C |
| Maximum Pressure | 150 psi |
| Approvals | UL, CSA, and CE certified |
