Century Motors 9608 Motor 1/20-75-120 Hp 115 V 1100 RPM

Name: Century Motors 9608 Motor 1/20-75-120 Hp 115 V 1100 RPM
Brand: Century Motors by Regal Beloit
SKU: 9608
Price: 360.57 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Century Motors 9608 Motor 1/20-75-120 Hp 115 V 1100 RPM

SKU: 9608

Brand:

Rating:

Quantity	Price	Stock
8 Usually Ships 2 - 4 Weeks	$360.57 /ea	8

Add to Cart

Add to Wishlist

The 9608 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Genteq 2840 Direct Drive Fan and Blower Motor 1/30Hp 115V 1075RPM 3-Speed	2840 Brand Genteq (Regal Beloit)

Add to Cart

Add to Wishlist

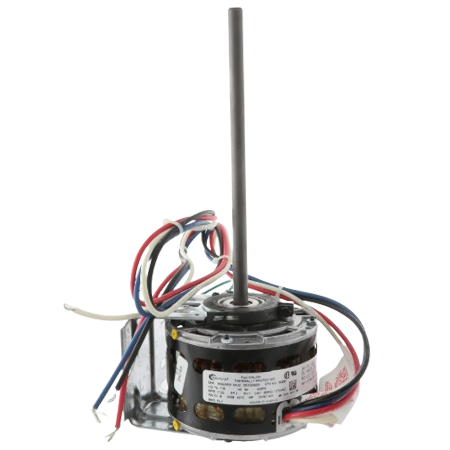

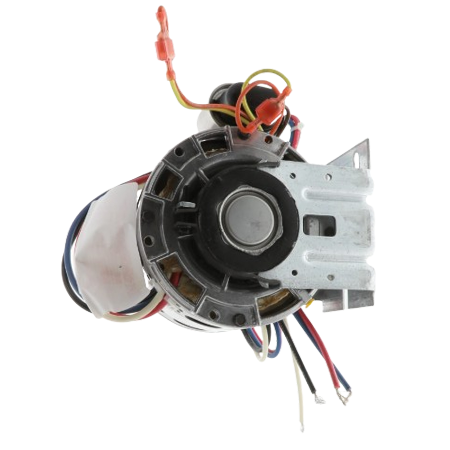

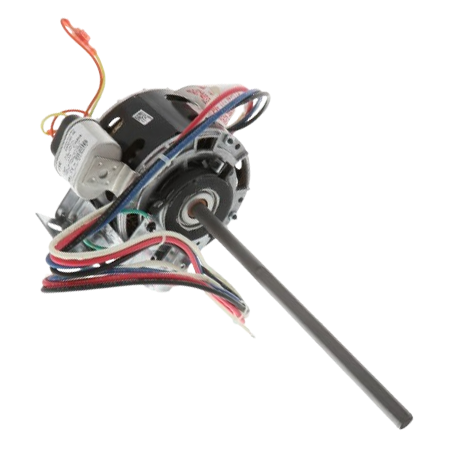

The 9608 is a motor that has a power rating of 1/20, 1/75, and 1/120 HP that operates at 115 V & 60 Hz. It has a 3-speed setting and rotates up to 1100 RPM with UL-recognition and CSA-certification.

The single-phase motor is suitable for furnace blowers, air handlers, fan coils, and air conditioning applications. It features a continuous air-over design and permanent split capacitor with auto protector allowing excellent performance.

The 9608 replaces part numbers K48HXBHZ955, X70500149-02, MOT1875, DE3D462, F48Z30A01, 2840, and is a direct cross of 1676. The 12995 single round capacitor accessory and 12905 single oval run capacitor replacement part are also available.

Voltage	115V
Frequency	60 Hz
Rotation Speed	1100 RPM
Horsepower	1/20, 1/75, and 1/120 HP
Number of Speed	3-Speed
Frame	42 NEMA
Rotation	Reversible
Mounting	Resilient Base
Frame Material	Rolled Steel
Approvals	UL-recognized and CSA-certified

Download Product Information:

Century Motors 9608 Motor Technical Datasheet

Century Motors 9608 Motor Catalog
