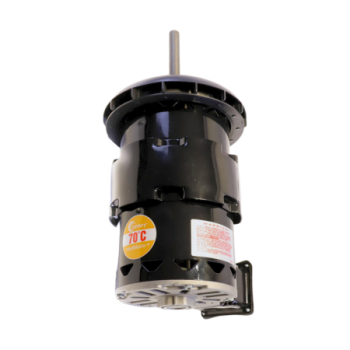

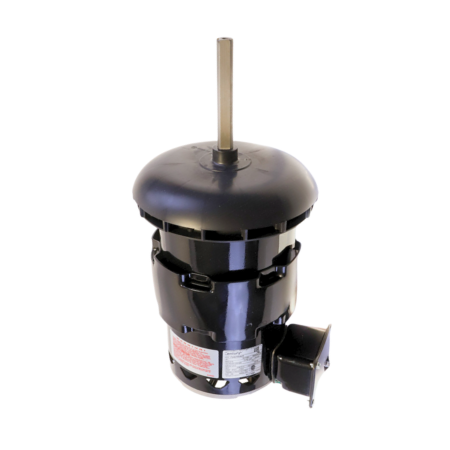

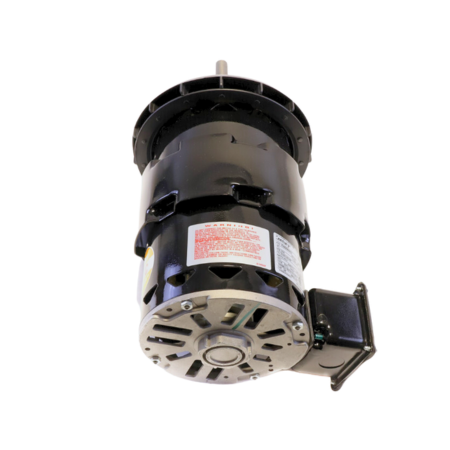

The Century Motors FC1106F is a single-phase 6-pole condenser fan motor with a 5-5/8” diameter and open enclosure. This device operates at 6.4/3.2A, 1Hp, 200-230/460V, and 60 Hz power rating. UL and CSA Recognized.
The permanent split capacitor motor has a 5/8” shaft diameter with a flat and keyway. The shaft rotates at 1075 RPM in a reversible direction at 1-speed and runs continuously at 70°C (158°F) maximum ambient temperature.
The condenser fan motor features a 48Y frame made of rolled steel and double-sealed ball bearings. This device is thermally protected and has Class F insulation.
The FC1106F is a direct replacement for York S1-02427568000. Suitable for use with solid-state speed control devices. It is mounted using a round belly band.
| Thermal Protection | Automatic |
|---|---|
| Motor Orientation | Vertical Shaft Up |
| Motor Rotation | 1075 RPM; 1-Speed; Reversible |
| Maximum Ambient Temperature | 70°C (158°F) |
| Power Rating | 1Hp; 200-230/460V; 60 Hz |
| Capacitor | 25MFD/370V |
| Insulation Class | Class F |
| Number of Phase | Single-Phase |
| Frame Material | 48Y Frame; Rolled Steel |
| Service Factor | 1.0 |
