Copeland Compressor LAHA-032E-TAC-800 230V 3-Phase 11 200 Btu R404A Compressor

Name: Copeland Compressor LAHA-032E-TAC-800 230V 3-Phase 11 200 Btu R404A Compressor
Brand: Copeland Compressors
SKU: LAHA-032E-TAC-800
Price: 5021.07 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Copeland Compressor LAHA-032E-TAC-800 230V 3-Phase 11 200 Btu R404A Compressor

SKU: LAHA-032E-TAC-800

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$5,021.07 /ea	1

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

*Warranty Policy - Compressors

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from Industrial Stores.

Add to Cart

Add to Wishlist

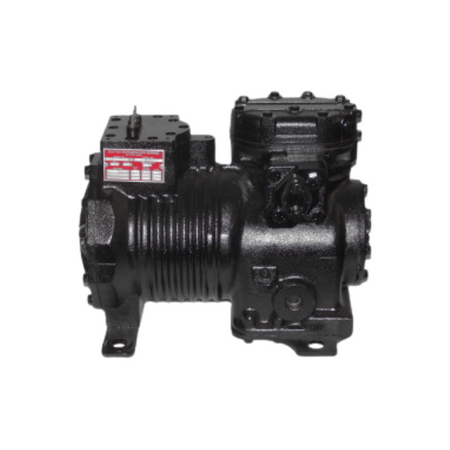

The Copeland LAHA-032E-TAC-800 is a 3-phase air-cooled semi-hermetic compressor that operates at 230V, 60 Hz, and 1/4 Hp power ratings. This device uses R404A refrigerant and has an 11,200 Btu maximum load capacity.

The semi-hermetic compressor has the compressor and motor placed within a sealed shell. This device increases gas pressure and then transports it through the pipe to distribute in the system.

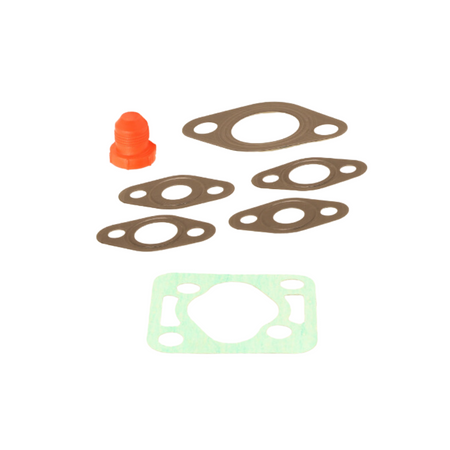

The Copelametic compressor is suitable for use with commercial refrigeration. This component is easily accessible for field maintenance and includes an installation gasket set.

Liquid Line Size	5/8" Flare
Maximum Heat Capacity	11,200 Btu
Number of Phase	3-Phase
Suction Line Size	1-1/8" Sweat
Voltage	230V
Refrigerant	R404A
Horsepower	1/4 Hp
Frequency	60 Hz
Brand Series	Copelametic
Temperature Rating	Low

Download Product Information:

Copeland LAHA-032E-TAC Semi-Hermetic Compressor Data Sheet

Copeland LAHA-032E-TAC Semi-Hermetic Compressor Drawings

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What should phasing direction be? cw or ccw ?

Asked on February 19, 2021 by Ted from Hanover, PA

1 Answers

Have an answer? Click Here

Unfortunately, we are not able to obtain any information as to the phasing direction in the Copeland literature.

Replied on March 01, 2021 by Ori from Industrial Stores

HI, DO YOU HAVE THE TOTAL WEIGHT FOR THIS COMPRESSOR? PACKED WEIGHT, IT SAYS 20 POUND BUT THATS NOT RIGHT, IT SHOULD BE ABOVE 200 I THINK. THANKS FOR YOUR ANSWER

Asked on November 10, 2017 by MARCOS from miami, fl

1 Answers

Have an answer? Click Here

The total weight of the Copeland LAHA-032E-TAC-800 compressor is 218 LBS.

Replied on November 11, 2017 by Ori from Industrial Stores
