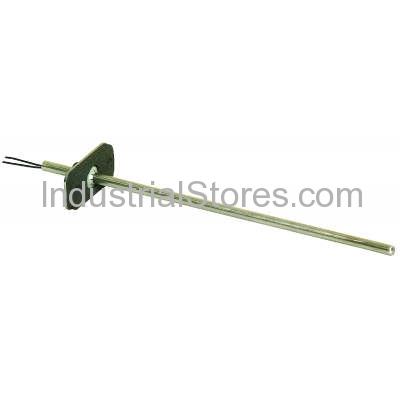

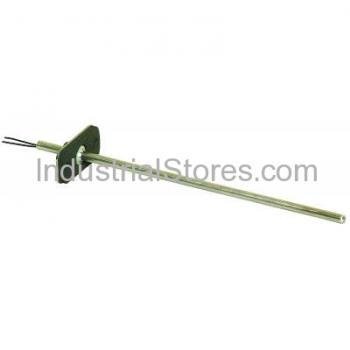

D20K ohm NTC Duct Temp Sensor, 6 in. probe, 45-99F, For use with W7751.
Overview
Direct wired temperature sensor used to sense discharge or return air temperature in a duct controlled by an Excel 10 Series 2000 Controller.
Features
Primary and/or secondary sensor for use with electronic control systems.
Integral 20 K ohm non-linear NTC thermistor.
Rugged aluminum insertion probe.
Product Specifications
Application
Primary and/or secondary sensors in electronic control systems
Dimensions (in.)
1 in. high x 2 in. wide x 7 in. deep
Dimensions (mm)
25 mm high x 51 mm wide x 177 mm deep
Used With
XL10, W7751
Item Type
Product
Mounting
Mounts on flat duct or plenum surface with integral mounting flange or in a 2 in. x 4 in. (51 mm x 102 mm) junction box.
Operating Humidity Range (% RH)
5 to 95% RH, non-condensing
Sensor
20 K ohm NTC non-linear
Operating Temperature Range (F)
45 F to 99 F
Operating Temperature Range (C)
7 C to 37 C
Shipping and Storage Temperature Range (F)
-40 F to +150 F
Shipping and Storage Temperature Range (C)
-40 C to +65 C
Insertion Length (in.)
6 in.
Insertion Length (mm)
152 mm
