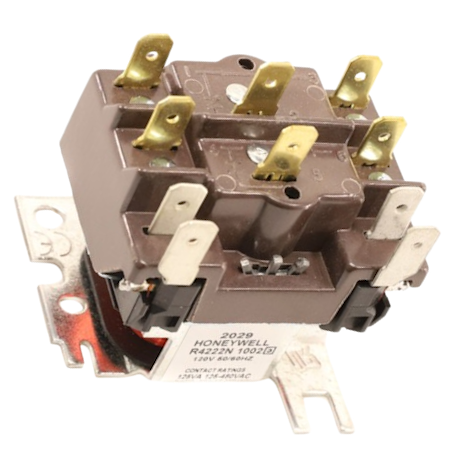

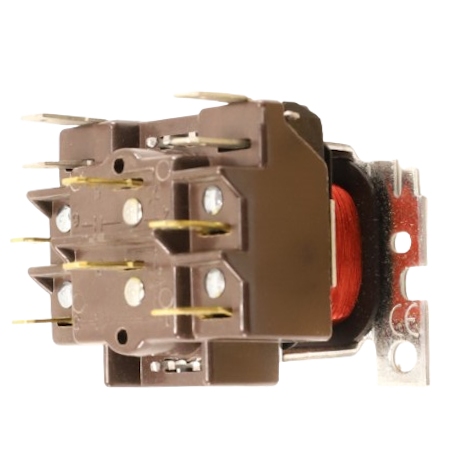

​The Honeywell R4222N1002 is a general-purpose switching relay designed for applications such as refrigeration, air conditioning equipment, appliances, and vending machines.  It operates with a 120V AC coil and features a DPDT switching configuration, allowing it to control two separate circuits independently.  The relay is equipped with 1/4" quick-connect terminals for straightforward installation and wiring.

This relay is constructed with laminated magnet components, enhancing operational efficiency.  Its contacts are rated for voltages up to 600 Vac, making it versatile for various electrical applications.   The molded terminal numbers and the circuit diagram displayed on the top of the relay facilitate easy identification during wiring and system operation checks.  Additionally, the relay is designed for high reliability, ensuring consistent performance over time.  The standard quick-connect terminals, with double quick-connects available on coil terminals, offer flexibility during installation.

The base of the R4222N1002 is designed for easy replacement of competitive relays, making it compatible with models like the Steveco 90-340 and Mars 90340.  The R4222N1002 is paired with the RM7890A1015 On-Off Primary Control Unit, which directly replaces part number  RM7890C1005.
