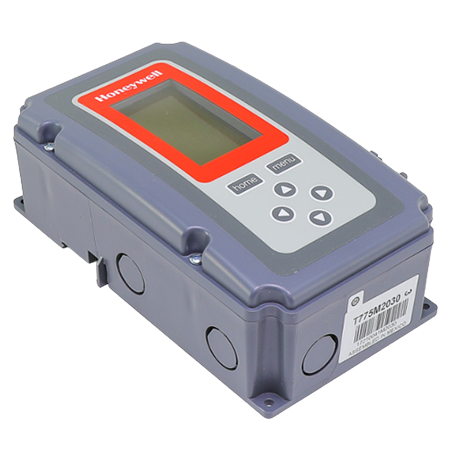

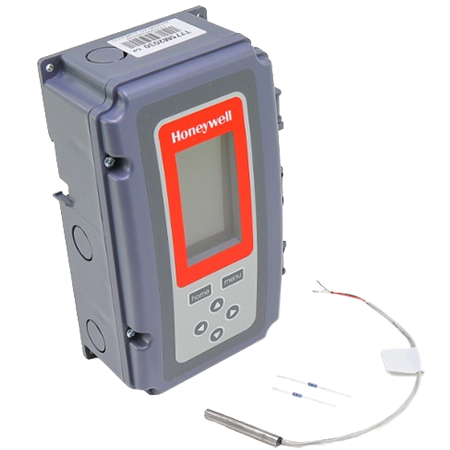

The T775M2030 is an electronic remote temperature controller that operates at 24, 120, or 240V, 50/60 Hz, and 8/10 VA power consumption. It has 4 SPDT relay outputs, 2 analog outputs, and 2 sensor inputs with a -40 to 248°F (-40 to 120°C) setpoint range. CE-marked and UL-listed.

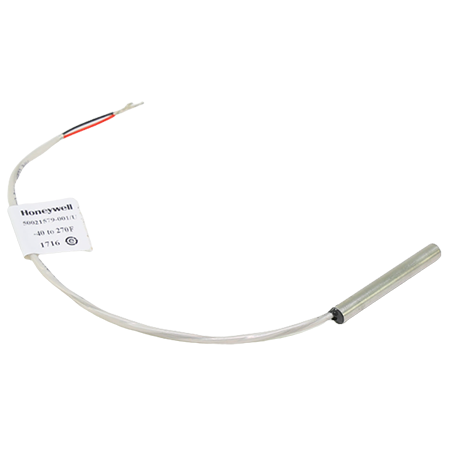

The modulating remote temperature controller is constructed with an easy-to-read graphical interface and large keypads for quick configurations. The unit is designed with an internal time clock scheduler that allows energy efficiency during unattended times. The 50021579-001 temperature sensor replacement part is also available.
Check out the available accessories:
The T775M2030 replaces part numbers T775E1114, T775F1022, T775F1055, and T775F1089.
| Voltage | 24/120/240V |
|---|---|
| Frequency | 50/60 Hz |
| Power Consumption | 8 to 10 VA |
| Relay Outputs | 4 SPDT |
| Analog Output Type | 2-10Vdc, 0-10Vdc, and 4-20mA |
| Relative Humidity | 5% to 95% non-condensing |
| Sensed Temperature Limits | -60 to 270°F (-51 to 132°C) |
| Approvals | CE-marked and UL-listed |
| Setpoint Range | -40 to 248°F (-40 to 120°C) |
| Enclosure Rating | NEMA 1 |
