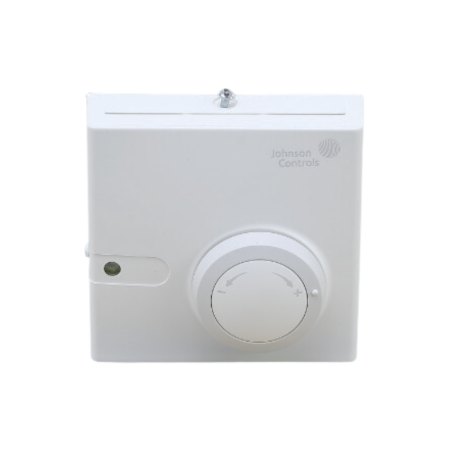

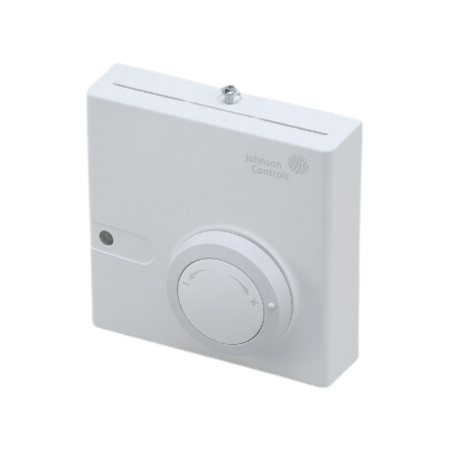

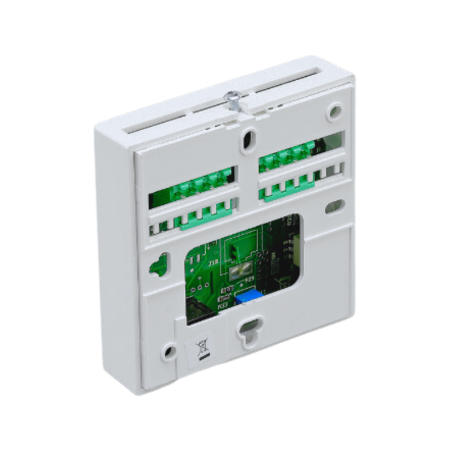

The Johnson Controls TE-68PT-1N00S is a white thermoplastic temperature sensor with a 1K ohm platinum that can measure 65 to 85°F temperature range. UL Listed and CE Marked.
Features:
The TE-68PT-1N00S directly replaces TE-67PT-1B00 and TE-67PT-2B00 temperature sensors. It provides an accurate temperature reading and sensing in-room wall mount application.
| Field Connection | Terminal Block |
|---|---|
| Setpoint Range | Warmer/Cooler |
| Material | White Thermoplastic |
| Sensor Element | 1K Ohm Thin-Film Platinum |
| Temperature Range | 65 to 85°F |
| Enclosure Dimension | 80 x 80 mm |
| Sensor Response Time | 10 minutes at 10 feet per minute |
| Accuracy | ±0.35F° at 70°F (±0.19C° at 21°C) |
| Reference Resistance | 1000 ohms at 32°F (0°C) |
| Temperature Coefficient | Approximately 2 ohms per F° (3.9 ohms per C°) |
Download Product Information:
Johnson Controls TE-6800 Series Temperature Sensors Datasheet
