Little Giant 554642 Condensate Removal Pump 6' Cord 1/30Hp 115V 60 Hz

Name: Little Giant 554642 Condensate Removal Pump 6' Cord 1/30Hp 115V 60 Hz
Brand: Little Giant
SKU: 554642
Price: 95.58 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Little Giant 554642 Condensate Removal Pump 6' Cord 1/30Hp 115V 60 Hz

SKU: 554642

UNSPSC: 40151500

Brand:

Rating:

Quantity	Price	Stock
6 Usually Ships 2 - 4 Weeks	$95.58 /ea	6

Add to Cart

Add to Wishlist

The 554642 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Little Giant 554542 Condensate Removal Pump VCMX-20ULS-C 115V 1/30 HP with 6ft Cord	554542 Brand Little Giant

Add to Cart

Add to Wishlist

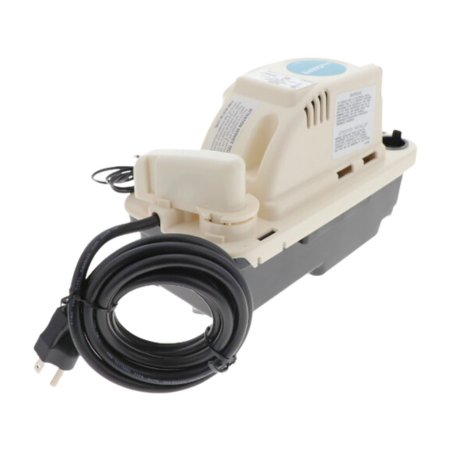

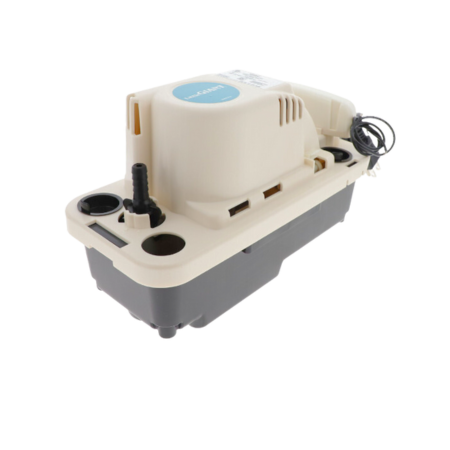

The Little Giant 554642 (VCMA-20ULS-C-PRO) is a plastic condensate removal pump that operates at 1/30Hp, 115V, 93W, and 60 Hz, with a 1.5A current draw. The pump delivers a maximum flow rate of 84 GPH (1.4 GPM) at a 1-foot head and has a shutoff head of 21 feet (9.1 psi). The unit can handle fluid temperatures up to 140°F, making it ideal for various condensate management. It is UL and CSA-Listed, ensuring compliance with industry safety standards.

Key Features & Benefits

External Test/Run Lever – Facilitates quick diagnostics and system testing.
Built-in Safety Switch – Allows for system shutdown or alarm activation in case of high water levels.
Anti-Sweat Sleeve – Reduces external condensation on the tank, preventing moisture-related damage.
Compact & Slim Design – Vertical centrifugal pump design with a recessed tank sump for efficient water collection.
Durable Components – Features a stainless steel motor shaft, oil-resistant tank, and check valve for long-lasting performance.
Overflow Detection Switch – Dual-function normally open (NO) and normally closed (NC) operation, factory-set to NO for equipment shutdown.
Secure Discharge Connection – 3/8" O.D. barbed ¼-turn quick-release locking discharge adapter with a built-in check valve to prevent backflow.
Vibration & Noise Reduction – Rubber feet minimize operational noise and absorb vibrations.

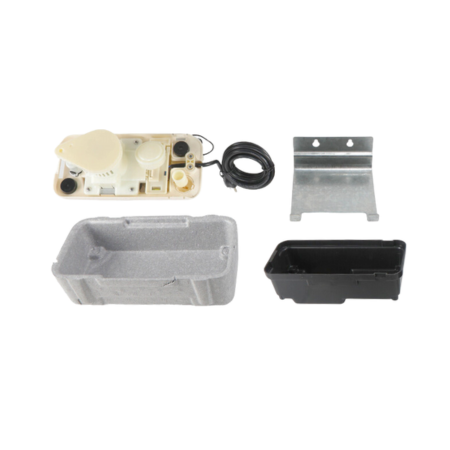

Quick Installation – Includes a galvanized steel "quick install" wall mount bracket for easy setup.
Automatic Start & Stop Operation – Ensures hands-free operation based on water levels.
Reliable Motor Protection – Thermally protected, fan-cooled motor prevents overheating.

The 554642 is a direct replacement for the 554542 model. Specifically engineered for the automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment where gravity drainage is not feasible. It is also suitable for high-efficiency oil and gas-fired condensing furnaces and condensing boilers, ensuring efficient condensate management in both residential and light commercial HVAC systems.

Power Ratings	1/30Hp, 115V, 60 Hz
Wattage	93W
Amperage	1.5A
Maximum Flow Rate	84 GPH (1.4 GPM)
Shutoff Head	21' (9.1 psi)
Maximum Fluid Temperature	140°F
Approvals	UL and CSA-Listed
Applications	HVAC Systems
Cord Length	6'
Product Type	Condensate Removal Pump
