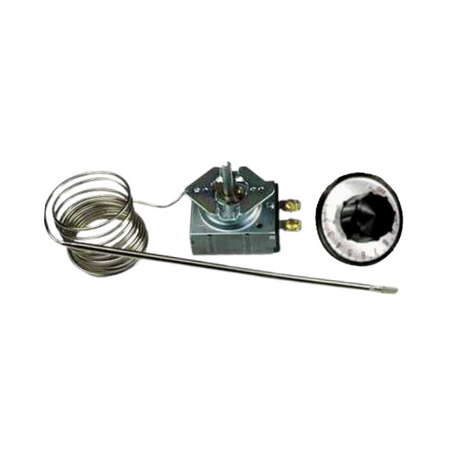

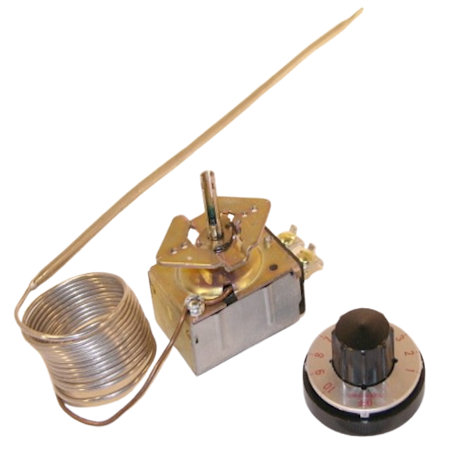

The Robertshaw 5210-363 is an SPST direct-acting electric thermostat with a 4-way dial. This has a 3/16” x 10-7/8” bulb and a 72” capillary made of nickel. UL Listed and CSA Certified.
The electric thermostat has a unique switch that makes it very sensitive to temperature changes. This has a temperature range from 150 to 550°F (66 to 288°C).
The 5210-363 is used in commercial applications such as sterilizers, incubators, dishwashers, water baths, laboratory ovens, steam tables, and scalding tanks.
| Capillary Size | 72" |
|---|---|
| Dial Type | 4-Way |
| Bulb Size | 3/16” x 10-7/8” |
| Material | Nickel |
| Temperature Range | 150-550°F (66-288°C) |
| Approvals | UL Listed and CSA Certified |
| Electrical Ratings | 20/15 amps at 120/240 VAC |
Download Product Information:
Robertshaw 5210 Commercial Electric Thermostat Ordering Data
