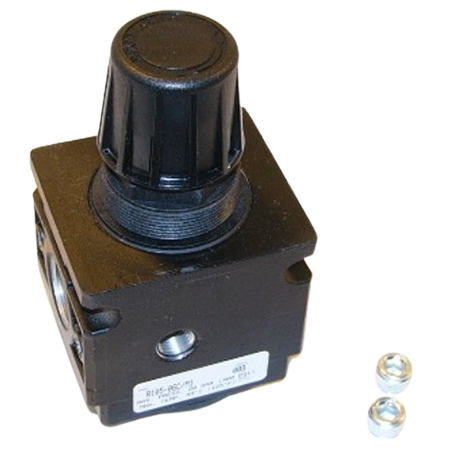

The R105-06C is a regulator that has a 3/4" NPT port size, 1/4" gauge, and 0 to 125 psi reduced pressure range with up to 300 psi maximum inlet supply. It has an aluminum body construction with a 150 SCFM high flow rating.
The panel mountable regulator is used to control and maintain pressure levels of air within the system. The unit features a diaphragm-operated design with a balanced poppet that allows fast and precise regulation. The downstream pressure can be regulated to the desired setting using the adjusting knob.
The R105-06C is easy to install with integral mounting slots without additional brackets. It can also be connected to QUBE units using screws and O-rings. The 275Y160S Gage and SAR10Y57 mounting bracket and nut accessories are also available.
| Adjusting Knob Material | Acetal |
|---|---|
| Reduced Pressure Range | 0 to 125 psi |
| Body Material | Aluminum |
| Temperature Rating | 40 to 150°F (4.4 to 65.5°C) |
| Maximum Supply Pressure | 300 psi |
| Gauge Ports Size (2) | 1/4" |
| Port Size | 3/4" NPT |
| Bottom Plug Material | Zinc |
| Cage Material | Glass-Filled Acetal Plastic |
| Elastomers Material | Buna N |
