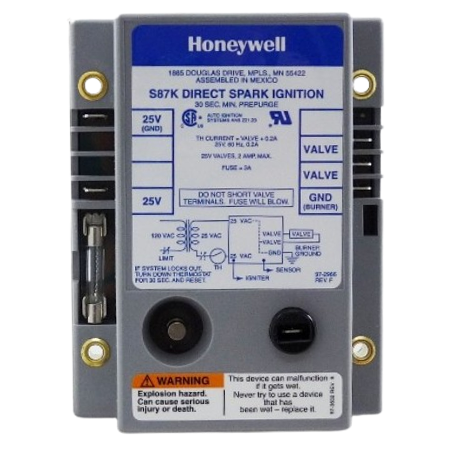

The 101243-001 is an ignition control that operates at 25V, 2A, and 60 Hz frequency. It has a 30 seconds minimum pre-purge. UL-recognized and CSA-certified.
The ignition control is suitable for P250AF and P265F DI series gas burner applications. The unit is used to execute the pre-purge operation and opens the gas valve once it is done allowing gas to flow to the burner. It also provides a lock-out condition once the trial for ignition fails to ignite a flame to provide safety.
The 101243-001 is easy to install and if a lock-out condition occurs, put the unit in the off position and wait for 30 seconds to reset the ignition control.
| Voltage | 25V |
|---|---|
| Maximum Amperage | 2A |
| Frequency | 60 Hz |
| Pre-Purge Time | 30-seconds |
| Approvals | UL-recognized and CSA-certified |
| Application | Gas Burners |
Download Product Information:
Wayne Combustion Model P250AF and P265F Series Gas Burner Parts List
