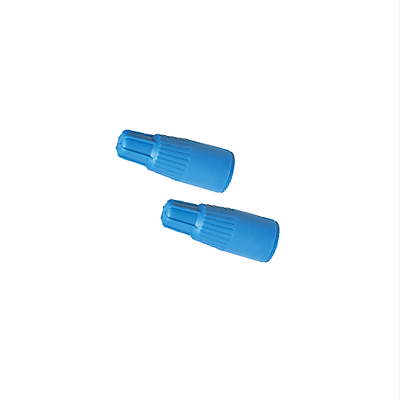

BAPI BA/SFC2000-500 Sealant Filled Twist-On Connectors for electric wiring protection especially on field terminations. This connector accepts two 22 AWG wires or one 22 AWG and one 16 or 18 AWG wire. Voltage rating is at 300V and a temperature not to exceed 221°F (105ºC)
The BAPI Sealant Filled Connectors are designed to keep the electrical connections from moisture and oxidation. Securing the electric connections helps to prevent fire, electrocution, and flashover.
| BAPI Sealant Filled Connectors | ||
| Model No. | Type | Quantity (pcs) |
| SFC1000-100 | Crimp-On | 100 |
| SFC1000-500 | Crimp-On | 500 |
| SFC1000-1000 | Crimp-On | 1000 |
| SFC2000-100 | Twist-On | 100 |
| SFC2000-1000 | Twist-On | 1000 |
| SFC3000-100 | Crimp-On | 100 |
| SFC3000-500 | Crimp-On | 500 |
| SFC3000-1000 | Crimp-On | 1000 |
| Connector Style | Twist-On |
|---|---|
| Wire Gauge | two 22 AWG wires or one 22 AWG and one 16 or 18 AWG wire |
| Voltage Rating | 300V |
| Operating Temperature | not exceed 221°F (105ºC) |
| Color | Blue |
Download Product Information:
