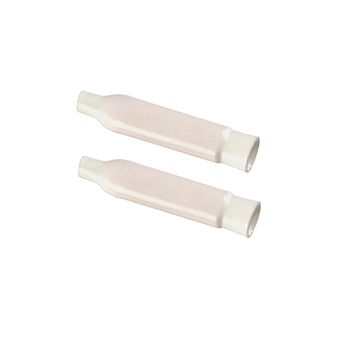

Protect your homes for potential fire, electrocution, and flashover with the use of BAPI Sealant Filled Connectors. The BAPI Sealant Filled Connectors are designed to prevent moisture accumulation and oxidation on electric connections.

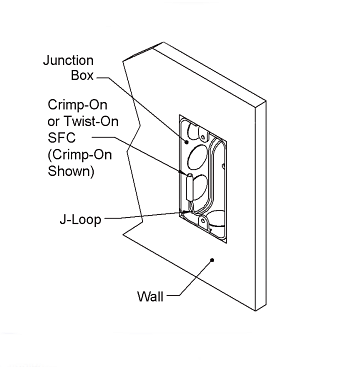

The SFC encapsulates and secures the electrical wires. Available in three different types, an easy twist-on SFC2000 and two versions of Crimp-On SFC1000 & SFC3000. For factory termination purposes, Crimp-On SFC3000 is a perfect choice. Then for field terminations, you can use either Twist-On SFC2000 or Crimp-On SFC1000.
The SFC1000 accepts two 22 to 26 AWG wires and has a voltage rating of 60V with a temperature not exceeding 140°F (60ºC).
We offer SFC1000 in different quantities, by 100, 500, or 1000 pieces.
| BAPI Sealant Filled Connectors | ||
| Model No. | Type | Quantity (pcs) |
| SFC1000-100 | Crimp-On | 100 |
| SFC1000-500 | Crimp-On | 500 |
| SFC1000-1000 | Crimp-On | 1000 |
| SFC2000-100 | Twist-On | 100 |
| SFC2000-500 | Twist-On | 500 |
| SFC2000-1000 | Twist-On | 1000 |
| SFC3000-100 | Crimp-On | 100 |
| SFC3000-500 | Crimp-On | 500 |
| SFC3000-1000 | Crimp-On | 1000 |
| Connector Style | Crimp-On |
|---|---|
| Voltage Rating | 60V |
| Wire Range | two 22 to 26 AWG wires |
| Operating Temperature | not exceed 140°F (60ºC) |
