The Flynn 409501 is a general-service flame relay ignition module that operates at 120 VAC and 50/60 Hz electrical ratings. It has a plastic housing that can resist 40°F to 185°F temperature range. CSA certified for safety and performance.
The module incorporates a separate electrode and sensor to help provide ignition and flame monitoring. Featuring a 10-second trial for ignition, microprocessor-based control, and green (Flame On) and red (Flame Fail) LED light indicators.

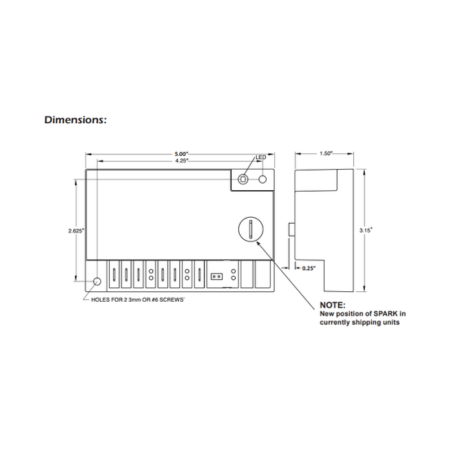

The 409501 is a new model that directly replaces the 407597. It can no longer fit inside an existing Flynn Flame Manager due to a 1/4" height increase and rearranged terminal and spark positions. However, the functionality remains the same.
It is suitable for use with burners that have capacities below 400,000 BTU/hr. For other options in the Flame Relay Series, check the following model numbers listed below:
| New Part Number | Old Part Number | Input Voltage | Ignition Sensing Configuration |
| 409501 409502 409503 409504 409505 |
407597 407595 407594 407590 407502 |
120 VAC 24 VAC 24 VAC 230 VAC 230 VAC |
Separate Electrode & Sensor Combined Electrode/Sensor Separate Electrode & Sensor Combined Electrode/Sensor Separate Electrode & Sensor |
| Approval | CSA Listed |
|---|---|
| Housing Material | Plastic |
| Application | Burners |
| Capacity | less than 400,000 btu/hr |
| Operating Temperature Range | -40 to 185°F |
| Trial for Ignition | 10 Seconds |
| Frequency | 50/60 Hz |
| Voltage | 120 VAC |
| Ignition Sensing Configuration | Separate Electrode and Sensor |
| Product Type | Flame Relay Ignition Module |
