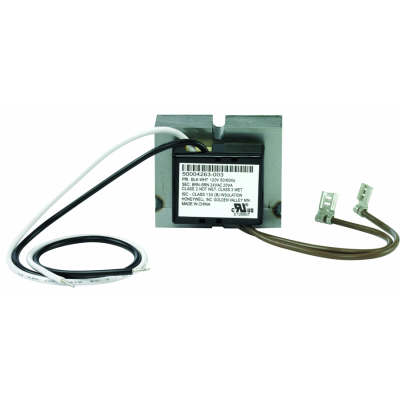

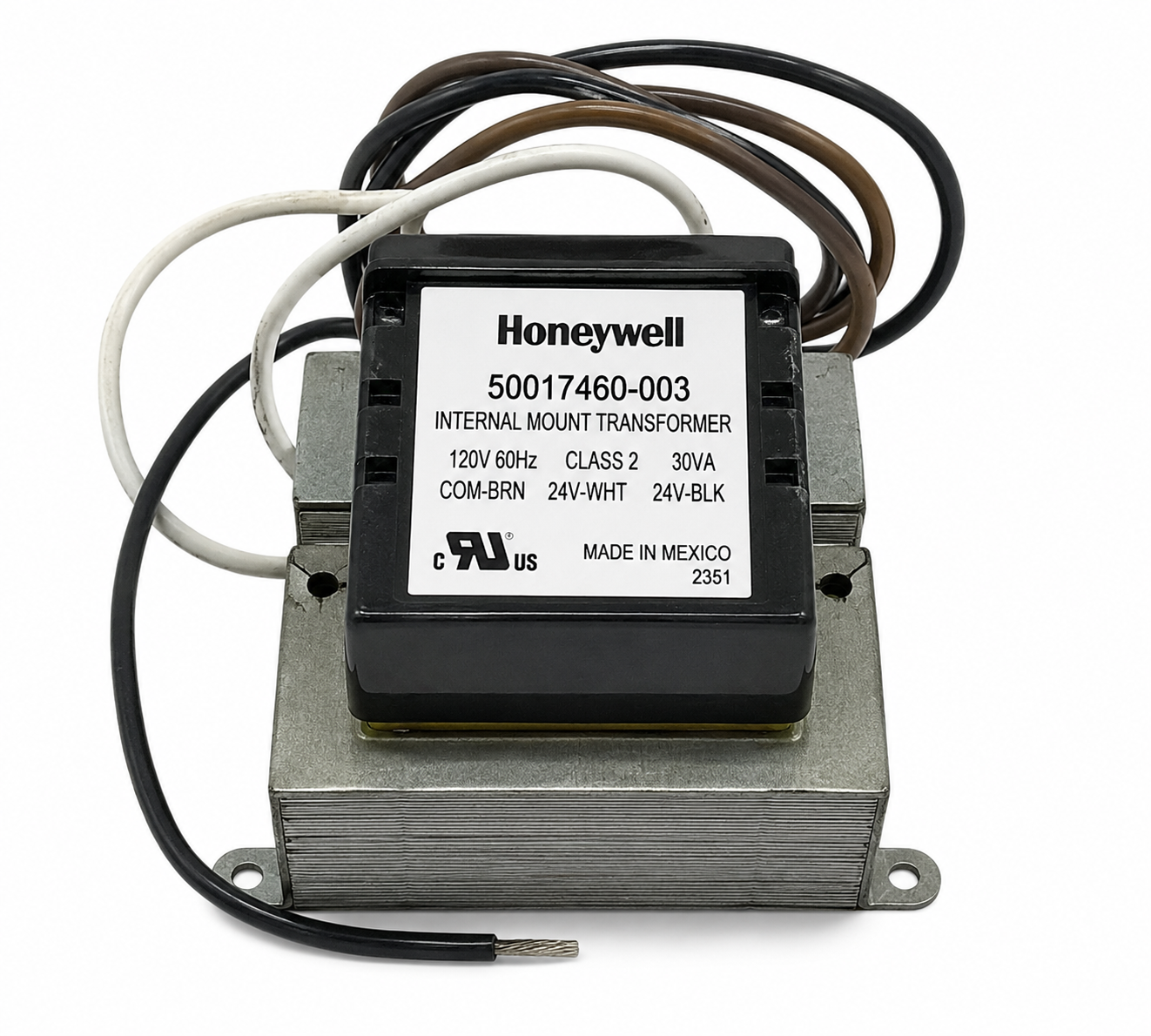

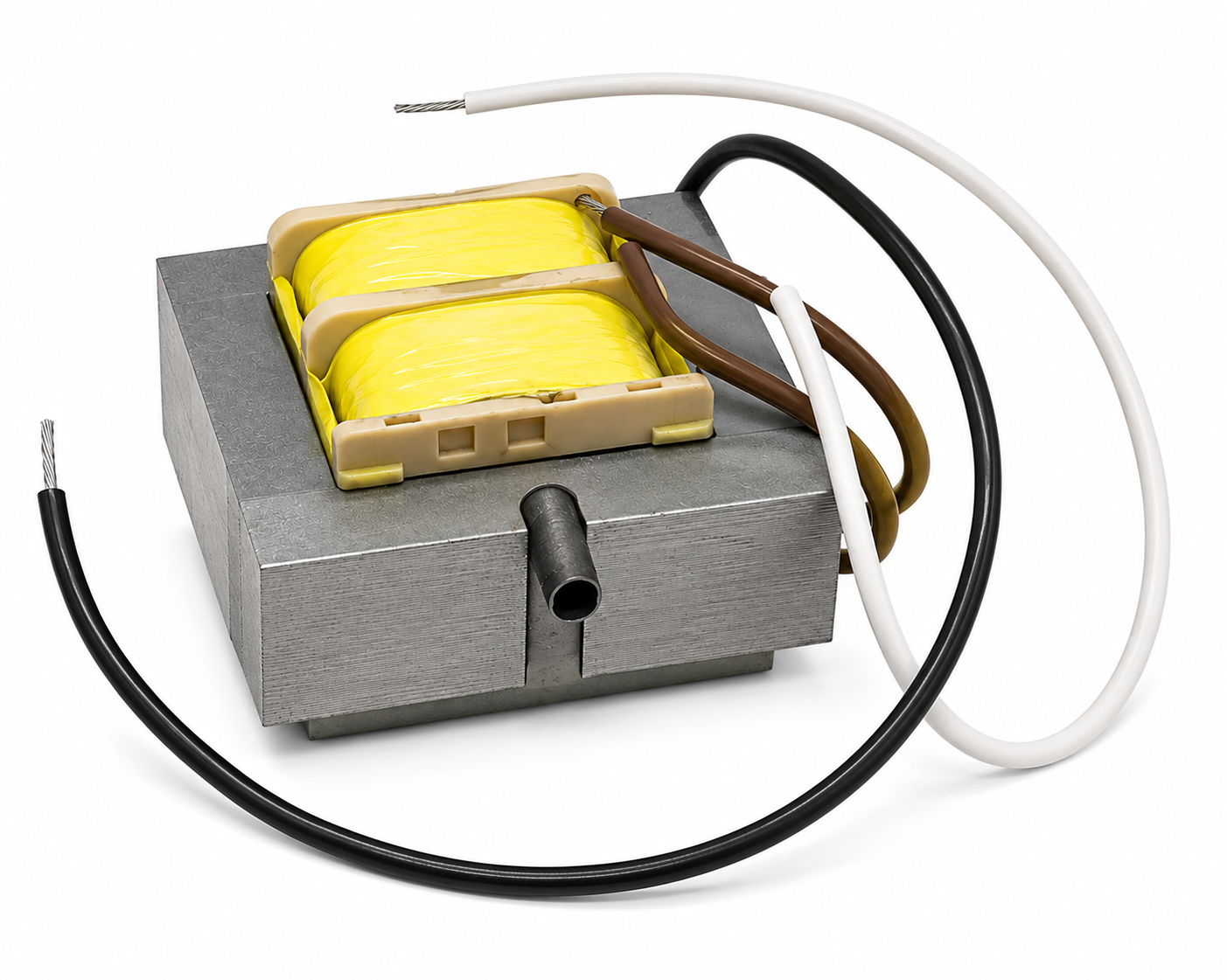

The Honeywell 50017460-003 Internal Mount Transformer converts 120 VAC input power to 24 VAC for Honeywell Series 90 Modutrol IV Series 2 and Series 3 motors.

Designed for 50/60 Hz operation and single-pole, single-throw control applications, this OEM transformer installs inside the actuator wiring compartment for a protected, space-efficient fit. Its direct-mount design provides the low-voltage power required for HVAC damper control and commercial building automation systems.

Order the Honeywell 50017460-003 for compatible Modutrol IV motor replacement and service applications.

Honeywell 50017460-003, Honeywell Q7230A1005, and Honeywell M9185D1004, together directly replace the M7285Q1008 Damper Actuator and must be purchased separately to form a complete replacement.



Frequently Asked Questions


• What is the Honeywell 50017460-003 used for?

The Honeywell 50017460-003 is an OEM internal-mount transformer designed to provide 24 VAC power from a 120 VAC input for compatible Honeywell Series 90 Modutrol IV motors.

• Which Honeywell motors are compatible with this transformer?

It is intended for compatible Honeywell Series 90 Modutrol IV Series 2 and Series 3 motors operating in 50/60 Hz applications.

• Is the Honeywell 50017460-003 an OEM product?

Yes. The Honeywell 50017460-003 is a genuine OEM Honeywell replacement component.

• Where is the transformer installed?

The transformer mounts inside the actuator wiring compartment, helping protect the component while maintaining a compact installation.

• What type of control application does it support?

It is designed for single-pole, single-throw control applications used in HVAC damper control and commercial building automation systems.

• What is included with the Honeywell 50017460-003?

The kit includes the internal-mount transformer, mounting screws, electrical connectors, and installation instructions.

• Does the Honeywell 50017460-003 directly replace the M7285Q1008 Damper Actuator by itself?

No. Honeywell 50017460-003, Honeywell Q7230A1005, and Honeywell M9185D1004 together directly replace the M7285Q1008 Damper Actuator. Each component must be purchased separately to form a complete replacement.
