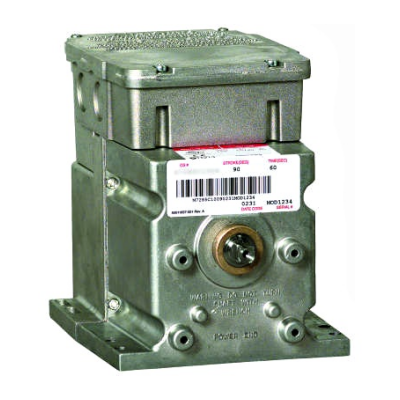

The Honeywell M9185D1004 Modutrol IV motor delivers proportional control for HVAC dampers and compatible valve applications.

Powered by 24 VAC, this heavy-duty actuator uses a 135 Ω control signal and provides 60 lb-in. of torque for accurate positioning.

Its spring-return mechanism automatically drives connected equipment to its normal position during power loss, supporting dependable system operation and equipment protection.

Designed for flexible installation, the M9185D1004 includes a factory-set 160-degree stroke adjustable from 90 to 160 degrees, a 30- to 60-second nominal operating time, quick-connect terminals, foot mounting, and a dual-ended 3/8-inch square shaft.

The integrated NEMA 3 enclosure helps protect the motor in demanding HVAC environments, while its -40°F to 150°F operating range supports year-round use.

For replacement applications, Honeywell M9185D1004, Honeywell Q7230A1005 and Honeywell 50017460-003 together directly replace the M7285Q1008 Damper Actuator and must be purchased separately to form a complete replacement.



Frequently Asked Questions


• What is the Honeywell M9185D1004 used for?

The Honeywell M9185D1004 is a Modutrol IV motor designed for proportional control of HVAC dampers and compatible valve applications.

• What voltage does the Honeywell M9185D1004 require?

The actuator operates on 24 VAC power.

• Does the Honeywell M9185D1004 have spring return?

Yes. Its spring-return mechanism returns connected equipment to its normal position during power loss.

• What control signal does the Honeywell M9185D1004 use?

The motor uses a 135-ohm proportional control signal for accurate positioning.

• What is the torque rating of the Honeywell M9185D1004?

The M9185D1004 provides 60 lb-in. of torque.

• Is the stroke adjustable?

Yes. The actuator has a factory-set 160-degree stroke that can be adjusted from 90 to 160 degrees.

• What is the operating time?

The nominal operating time is 30 to 60 seconds.

• Can the Honeywell M9185D1004 replace the M7285Q1008?

Yes, but it is only one part of the complete replacement. Honeywell M9185D1004, Honeywell Q7230A1005 and Honeywell 50017460-003 together directly replace the M7285Q1008 Damper Actuator.

• Are the replacement components sold together?

No. Honeywell M9185D1004, Honeywell Q7230A1005 and Honeywell 50017460-003 must be purchased separately to form a complete replacement.
