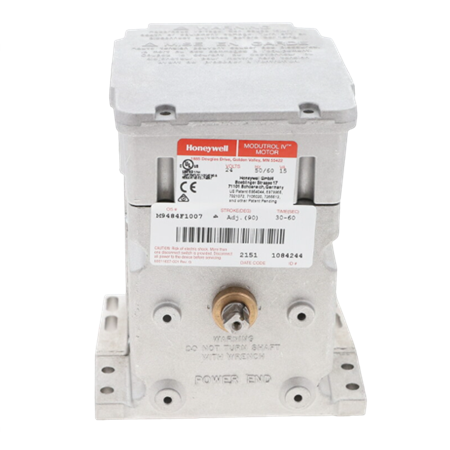

The Honeywell M9484F1007 is a proportioning control motor actuator for either normally open or normally closed valves, dampers, and other auxiliary equipment. This non-spring actuator is a dual-ended shaft and has 2 auxiliary switches with adjustable stroke from 90° to 160°. High torque power rating of 150 lb-in. at standard timing (60 sec for 160°).

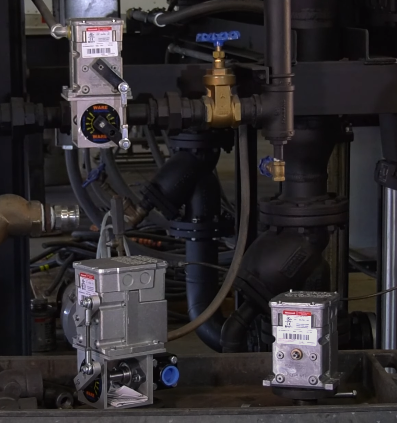

The Series 90 Modutrol Motors are multipurpose actuators, they can be used on various applications such as operating linkages, boilers, burners, oil valves, gas valves, feed water valves, and any device that needs to be able to actuate.

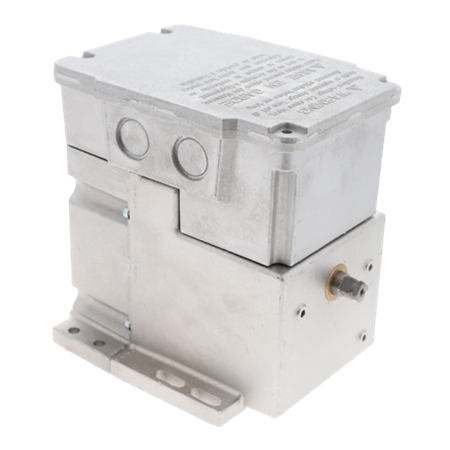

Encased in a die-cast aluminum housing with NEMA 3 rating weather protection. Using these motors requires Series 90 controllers.
See the following Modutrol Motor Accessories:
| MODEL | DESCRIPTION | MODEL | DESCRIPTION |
| 220736A 220736B |
Single Internal Auxiliary Switch Kit Two Internal Auxiliary Switch Kit |
Q100A1015 Q100A1023 |
Linkage Connects |
| 220738A | Adapter Bracket | Q181A1064 Q181A1015 Q181A1007 |
Auxiliary Potentiometer |
| 220741A | Screw Terminal Adapter | Q209E1010 Q209E1002 |
Potentiometer 300 Ohm Potentiometer 150 Ohm |
| 221455A | Adjustable Crank Arm with 3/8" Shaft | Q5001D1000 Q5001D1018 Q5001D1026 |
Valve Linkage |
| 221508A2 | Resistor Board | Q605 | Damper Linkage |
| 4074BYK | Resistor Kit 140/71/47/35/28 Ohm | Q607A1076 Q607B1083 |
Auxiliary Switch Control |
| 4074EDC | Resistor Kit 237 Ohm | Q7130A1006 Q7230A1005 Q7330A1004 |
Interface Module |
| 4074EED | Resistor Kit 4-20Ma | 50017460-001 | Internal Transformer 24/120/230 VAC |
| 4074ERU | Weatherproofing Kit | 50017460-003 | Internal Transformer 120V |
| 7617ADW | Motor Crank Arm |
| Voltage at 50/60Hz | 24V |
|---|---|
| Output Drive | Non-Spring Return, Dual Ended Shaft |
| Power Rating | 150 lb-in. torque at standard timing 60 sec for 160° |
| Power Consumption | 18W |
| Input Signal | 135 Ohm |
| Nominal Timing for 90° Stroke | 30 Seconds |
| Nominal Timing for 160° Stroke | 60 Seconds |
| Ambient Temperature Rating | -40° F (-40° C) to 150° F (66° C) |
| Housing Material | Die-Cast Aluminum |
| Approvals | CSA, UL Listed |
